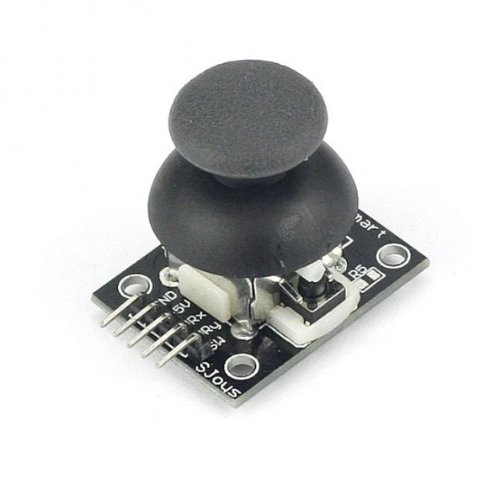

The SainSmart joystick shield is the must-have and best choice for lots of robot
projects need joystick. This module provides a affordable solution to that.
Simply connect to two analog inputs, the robot is at your commands with X,Y
control. It also has a switch that is connected to a digital pin. This joystick
module can be easily connect to Arduino by our IO Expansion Shield with supplied
cables.
Specifications
* Three axis (X,Y,Z(button))
* Size:37x25x32mm
* Weight: 15 gram
Package Content
1 x Joystick
10 x Dupont Line
Product Features
- Breakout module for Playstation2 analog joystick
- 5 pins on board: VCC, GND, X, Y and Button. Connect the module with 5V power suppy with VCC and GND, you can read out the joystick status by X,Y and button pins
- When using the 5V power supply, the default analog output for X,Y is 2.5V. With the direction of the arrow, the voltage up to 5V, and the opposite direction down to 0V.
I’ve purchased this twice – I might buy a few more just to keep them around. They work great, and are perfect for the RC controller I’m building.
